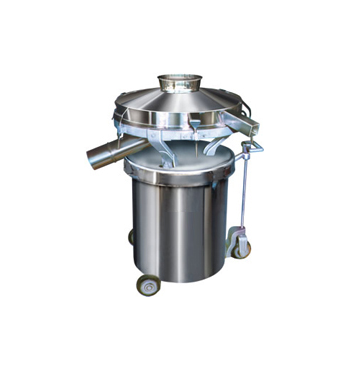

Sieving Grading Straining Machine (Sifter Machine Mechanical Type)
- Available in two models providing screening diameters of 500 mm and 750 mm.
- Portable – fitted with sturdy castors and occupies little space.
- Electric power requirement less than other machine of the kind. Power requirement are very much lower than units utilizing reciprocating system.
- Standard units provided with TEFC motors operating on 440 Volts 3 phase supply. Flame proof motor fitted on request.
- Easy to install. Requires minimum maintenance.
- Double and triple deck screens with out-let and hopper for bottom deck available on request.
- Easy dismantling and cleaning of screen.
- All contact parts and screens of stainless steel.
Applications of Sieving Grading Straining Machine (Sifter Machine Mechanical Type):
Chemicals, Pharmaceuticals, Dyestuff and colors, Food products, soaps and detergents Cosmetics, pesticides and fertilizers, Paper and paper products and Scrap recovery, Resin, Paints, Polyesters, Minerals, Fruit juice, China Clay, Rubber compounds, Fillers, Straining syrups, Suspended impurities from liquids & oils on continuous use, Cheese, Metal powders, Liquid glazed clay, Animal feed etc.
Sieving Grading Straining Machine (Sifter Machine Vibro Type)
- Specially designed hopper.
- Compact vibratory design for high speed & dust free sieving.
- Noiseless and maintenance free machine.
- All contact parts and and screen made of SS 304 (SS 316 Optionally).
- Low power consumption compared to reciprocating vibratory system.
Technical Specifications of Sieving Grading Straining Machine (Sifter Machine Mechanical Type):
| Machine Type |
TPC – 500 |
TPC – 750 |
Motor
|
1.5 HP, 1440 RPM, 415 VOLS,
3 phase, 50 Hz. |
1.5 HP, 1440 RPM, 415 VOLS,
3 phase, 50 Hz. |
Screens
|
54,000 TO 1,29,000 |
54,000 TO 1,29,000 |
Screens dia (mm)
|
510 |
750 |
Charging ht. (mm) (approx)
|
1080 |
1100 |
| Discharging ht. (mm) (approx)
|
770 |
770 |
| Overall Dimensions (cm) |
100 W x 100 D x 110 H |
100 W x 100 D x 110 H |
| Net weight (kgs) |
325 |
325 |
| Case Dimensions (cm) |
135 x 135 x 140 H |
135 x 135 x 140 H |
| Gross Weight (kgs) |
500 |
525 |
- Easy dismantling and cleaning of contact parts.
- Machine available with flame proof and double / triple deck options.
- All contact parts can be easily washed and / or sterilized.
- Machine is fitted with anti vibrating mounts.
