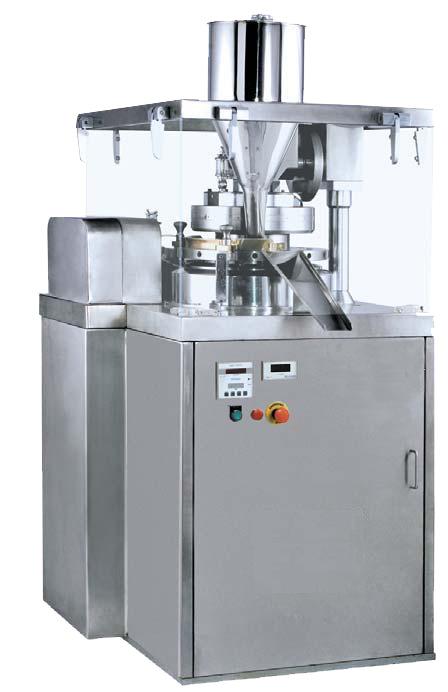

Single Rotary Tablet Press / Compression Machine: 16D/ 20D/ 23DB/ 26BB Stations
Features of Single Rotary Tablet Press / Compression Machine with 16D / 20D / 23DB / 26BB Stations:
It is a square GMP model Single Rotary Tablet Press. Operator-friendly design, provided with electronic digital tablet cum RPM counter. Reverse-direction motion protection is also provided for safety purposes.
- Cast iron body and turret of special grade iron casting with CI middle plate, imported needle roller, and bearing are provided at the bottom of the turret.
- There are not any painted parts in the tablet manufacturing zone as all parts are made of stainless steel 304 orgunmetal or hard chrome plated.
- Upper punch penetration system, variable speed pulley, one shot lubrication system & anti vibrating mount
- Lower guard of polished stainless steel and upper guards of acrylic material. Turret guards have sturdy aluminum frames. All guards are interlocked for safety.
- Provided with double-sided lifting cams. An extra hand wheel is provided for easy loading of punch die sets.
- Effective Dust Extraction Nozzles.
- Options are available for customization like (1) Force Feeding Attachment (2) A. C. Variable Drive & Electromagnetic Clutch (3) Poly Carbonate Upper Guards (4) Auto Lubrication Pump
Safety Features of Single Rotary Tablet Press
- Quality mechanism that releases overload pressure
- Reverse direction mode
- Overload Protection
- Emergency Stop Button
- Turret Anti-Turning Mechanism
- Interlocking Safety Guards
Additional Features
- PLC Control System
- Ph. Bronze Gearing with Hardened Steel Worm
- ELNP Turret
- Auto Lubrication System
Customization Options are available:
- Force Feeding Attachment
- A. C. Variable Drive & Electromagnetic Clutch
- Poly Carbonate Upper Guards
- Auto Lubrication Pump
Why Choose Our Single Rotary Tablet Press
Established in 2009, the Tablet Press Company is one of the leading machine manufacturer companies that provide the best material-made tablet compressor machines. Since its establishment, we have focused on providing technically superior products that are cost-effective and delivered fast. Our company can cater to immediate bulk requirements with customization options. Our clients are happy with our quality products and fast deliveries.
Our dedicated team finds out the solutions that are best suited to the projects. We regularly monitor the whole manufacturing process with quality measures. Our all products ensure services and quality aspects. We ensure the quality & efficacy of our products through monitoring aspects such as:
- Finishing
- Proper & precise assembling
- Power efficiency
- Effective for heavy-duty work
- Noise control
- Durability
- Low maintenance
- Upper punch penetration system, variable speed pulley, one shot lubrication system & anti vibrating mount
- Lower guard of polished stainless steel and upper guards of acrylic material. Turret guards has sturdy aluminum frame. All guards are interlocked for safety.
- Provided with double sided lifting cams. Extra hand wheel is provided for easy loading of punch die sets.
- Effective Dust Extraction Nozzles.
- Options are available for customization like (1) Force Feeding Attachment (2) A. C. Variable Drive & Electromagnetic Clutch (3) Poly Carbonate Upper Guards (4) Auto Lubrication Pump.
Technical Specifications of Single Rotary Tablet Press/Compression Machine with 16D / 20D / 23DB / 26BB Stations
Model | TPC – 16 – D | TPC – 20 – D | TPC – 23 – DB | TPC – 26 – BB | |
Type of Tooling | “D” | “D” | “DB” | “BB” | |
No. of Station | 16 | 20 | 23 | 26 | |
Tablets Output /hour* (Max.) | 38400 | 48000 | 55200 | 62400 | |
Operating Pressure Max. (Ton) | 10 | 10 | 10 | 6 | |
Tablet Diameter Max. (mm) | 25 | 25 | 16 | 11.1 | |
Depth of Fill Max. (mm) | 20.5 | 20.5 | 18,5 | 17.5 | |
Upper Punch Penetration (mm) | 1.5 – 8 | 1.5 – 8 | 1.5 – 8 | 1.5 – 8 | |
Total Ele. Power (hp) | 3 HP | ||||
Electric Power Supply | 2.2 Kw, 1440 RPM, 415 V., 3 Phase, 50 Hz OR As Per the requirement of Customer |
||||
Turret RPM Max. | 40 | ||||
Tablet Press Dimension (mm) (Approx.) | 980 x 1020 x 1820 | ||||
Net Weight (kgs) (Approx.) | 1000 |
* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
