- Swing type beaters assembly is provided as a standard supply, which increases the output by 10 to 30% and is easy to clean.
- Beaters and shaft are of HCHC quality and beaters are further hardened and hard chrome plated. Beaters are fitted on a splined shaft.
- Transmission of heat to the chamber from the bearings is minimum as they are away in separate pillow blocks. This facilitates to some extent in processing of heat sensitive products.
- Beaters assembly is dynamically balanced which reduces vibration and noise level and increases bearing life.
- Castors are provided for mobility and brakes can be applied for fixing machine at one place.

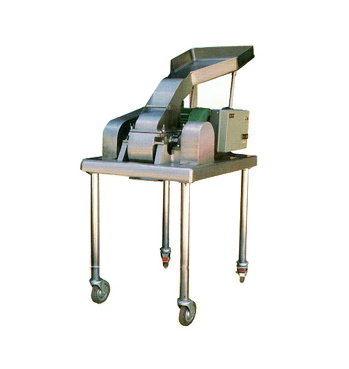

- Communiting mill is available in plain & water jacketed type, the most suitable for pharmaceutical industry. Flameproof electricals can be provided on demand at extra cost.
Technical Specifications of Communiting Mill:
| Model |
TPC-CM |
Rotor Speed
|
1000-2250-4500 rpm |
Blades
|
Swinging type with knife and impact edge |
| Screens |
1. Round hole perforated stainless steel sheet |
Electric motor
|
7.5 hp., 1440 RPM, 440 V., 50 Hz., 3 Phase |
Overall Dimensions (mm)
|
69 (L) X 127 (W) X 170 cm (H) |
| Net Weight (kgs) (Approx) |
310 |
Output (kg / hour)
|
25 to 300 (Varies according to product, rotor speed & screen) |
* Depending upon the tooling size, shape and material characteristics
Note: We reserve right to change specifications without any prior notice.
